Floorplan - 2017 Forest River RV Wildcat Maxx 255RLX
-
-
-
-

-
Sleeps 6
-
1 Slides
-
Rear Living AreaU Shaped Dinette
-
29ft Long
-
5,750 lbs
-
Marble, Weathered Slate, Ebony & Ivory

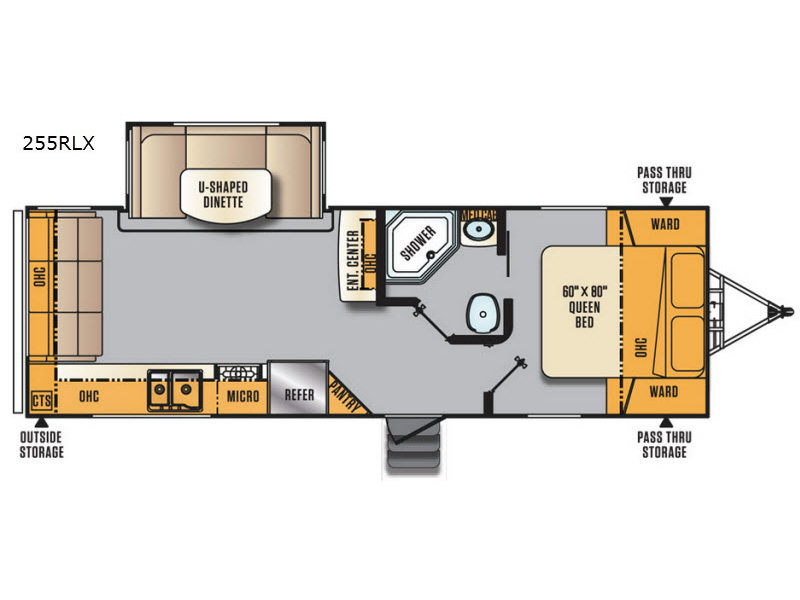

255RLX Floorplan
Specifications
Sleeps | 6 | Slides | 1 |
Length | 29 ft 5 in | Ext Width | 8 ft |
Ext Height | 11 ft 6 in | Interior Color | Marble, Weathered Slate, Ebony & Ivory |
Hitch Weight | 620 lbs | GVWR | 7620 lbs |
Dry Weight | 5750 lbs | Cargo Capacity | 1870 lbs |
Fresh Water Capacity | 67 gals | Grey Water Capacity | 32 gals |
Black Water Capacity | 32 gals | Furnace BTU | 35000 btu |
Available Beds | Queen | Refrigerator Type | Double Door |
Refrigerator Size | 8 cu ft | Cooktop Burners | 3 |
Number of Awnings | 1 | AC BTU | 13500 btu |
Awning Info | 17' Electric | Shower Type | Neo-Angled |
Description
Let your fond memories of camping as a kid live on for years to come as you continue your camping experience in the 255RLX Wildcat Maxx travel trailer by Forest River! This model features a single slide out and a u-shaped dinette.
Straight in from the entry door is a conveniently located bathroom with two entry doors. Here you will find a corner shower, medicine cabinet, sink, and a toilet. A sliding door from the bathroom leads into the front bedroom.
After a day of fun and adventure find yourself relaxing in the bedroom. There is a queen bed, two wardrobes, and an overhead cabinet for your belongings.
Along the door side of the trailer there is a corner pantry, refrigerator, three burner range where you can fix delicious meals, microwave, and a double sink which makes for easy clean up. You will also love the extra counter space for food prep.
Along the rear wall you will find a sofa with an overhead cabinet. Adjacent to the sofa there is a slide out with a u-shaped dinette. Here you can enjoy your meals, and maybe linger a bit longer and play a game or two while enjoying a cup of coffee. Along the interior wall there is an entertainment center which is easily seen from the kitchen/living area.
Outdoors find plenty of storage for your extra camping gear and more!
Features
Living Room
- Extra large booth dinette with storage under and dual pedestal table
- Tri-fold sofa Hide-a-Bed sleeper sofa
- Large panoramic picture window at all dinettes
- Overhead cabinets in slide room (dinner plate depth!)
- Pleated night shades
- AM/FM/CD/DVD/USB/AV system with remote and Bluetooth technology
- RCA plugs for game systems or digital cameras
- Taller 6′ high slide-out height (1/2-Ton Fifth Wheels)
- Taller 6′4″ high slide-out height (Standard Fifth Wheels)
- Satellite and cable TV hook ups
- 12V LED decorative lighting in slide-outs
- High back, extra-large swivel rocking chairs (select models)
- Slider windows at ends of slide-outs
- Maxx Bright complete interior LED lighting
- Residential carpeting with Stain Guard
- Magazine rack
- Command center with monitor panel
- Surround sound speakers
- Wall clock
Executive Kitchen
- Residential Shaker-style hardwood cabinet doors
- Residential hidden hinges
- Brushed nickel finish door and drawer hardware
- Stainless appliances
- Residential full-extension steel ball-bearing drawer guides
- Storage above refrigerator (most models)
- Upgraded microwave oven
- Brushed nickel pull-out residential style metal high-rise faucet with optional solid surface counters
- 8 cu. ft. refrigerator (included on standard Fifth Wheels)
- Extra large dual-basin kitchen sink with flush mount dual sink covers
- Deep storage overhead kitchen cabinets
- Extra large pots and pans drawer (most models)
- Toe kicks in kitchen cabinet base
- Glued down residential Trekk® linoleum
- 22" oven and 3-burner range with cover and built-in knife rack
- Residential style range vent with light and fan
- Paper towel rack
- Cutlery drawer
- Kitchen wall border
- Cutting board
- Knife rack
- C.T.S. (central trash system) (most models)
Bathroom
- Porcelain toilet with foot pedal flush
- Built-in wood medicine cabinet
- GFI recepts in bathroom
- Residential shower surround with radius glass shower doors
- Skylight in shower
- Power vent fan
- Built-in wood dual toilet paper holder with magazine rack
- Soap dish
- Tooth brush holder
- Dual towel racks
- Radius glass shower doors
Bedroom
- Pillow-top residential queen bed
- Full stand-up height in all bedrooms
- Flat floor bedrooms in all Fifth Wheels (no more steps on side of bed)
- Gas struts to lift bed for under-bed storage
- Fully finished bed bases
- Complete LED lighting including reading lights
- Upgraded residential queen-size bedspread and headboard
- Bedroom roof vent
Construction
- 3/8″ roof decking
- Insulated A/C duct work
- Heavy duty steel I-beam chassis
- High density R10 block foam insulation in walls
- Vinyl covered interior decorative wall board
- Full-size radius entry door
- 13.5K BTU air conditioner
- 5/8″ seamless floor decking
- One-piece Alpha Super Flex 3 roof membrane (12 year warranty)
- 5″ engineered and fabricated roof rafters on 16″ center
- 2 layers of (R-7) fiberglass roof and end wall insulation plus reflective (R-38) with Astrofoil
- (R-7) Fiberglass floor insulation plus reflective (R-38) with Astrofoil
- Aerodynamic gel-coated fiberglass front cap
- All Season 12V heating pads on all tanks
- Optimized turning radius for today's short-bed trucks
- 2″ thick Alumacat™ vacuum-bonded fiberglass laminated sidewalls
- Spring-loaded quick release jack pins on landing gear legs
- Radius-wrap aluminum skirt metal
- Fully enclosed underbelly with (R-7) fiberglass insulation and (R-38) Astrofoil under holding tank
- Premium carpet padding
- Synthetic residential carpeting with stain guard
- Load range D 15″ radial tires (standard) or optional load range E 16″ tires
- E-Z lube axles
- Molded fender skirt
- Pre-wired for back-up camera
- Vented attic
Climatech™ Cold Weather All Seasons Insulation Package
- Underbelly has R-38 reflective astro-foil insulation + R-7 fiberglass under each holding tank. Also included is a 12-volt tank heater for each of the holding tanks.
- The floor has R-38 reflective astro-foil insulation + R-7 fiberglass insulation.
- The ceiling, front wall and rear wall have R-38 reflective astro-foil insulation + two-layers of R-7 fiberglass insulation.
- The side walls, three sides of the slide-out, the raised upper deck of all fifth wheels and all raised bunk beds are vacuum-bonded, aluminum construction with R-10 high-density block foam insulation
- The slide-out floor also has a layer of R-38 reflective astro-foil insulation on top of 1.5" plywood decking.
- On all fifth wheels, the outside storage compartments have an actual heat duct blowing hot air from the furnace directly into the storage compartment.
- Every Wildcat Maxx comes with a vented attic to allow moisture to escape in the winter and heat to escape in the summer.
- Every Wildcat Maxx comes standard with a 35,000 BTU furnace.
Standard Features
- Linc® 8-function touchscreen remote
- USB Charging Port Package
- Numeric keypad keyless entry security system
- Power tongue jack (travel trailers only)
- HDMI AM/FM/DVD/CD/USB Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Front and rear electric stabilizer jacks
- Coach-Net® 24-hour technical and roadside assistance
- Solar Prep (optional 200W solar panels available, up to 400W)
- Back-up camera prep with optional camera system available
- High-end stainless appliances
- Maxx coat rack
- Outside shower system
- 1" thick, insulated slam-latch baggage doors on extra-large exterior storage
- Maxx travel rack (250 lb. load capacity)
- Exterior Maxx-Bright LED awning strip lighting
- Sanitation maintenance black tank flush
- Battery disconnect
- Maxx Bright complete coach LED light package
Half-Ton Travel Trailer Standard Features
- Solar Prep
- Large LCD HDTV
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
Standard Series Fifth Wheel Standard Features
- Large LCD TVs on all models
- Samsung® Staron solid surface counters (kitchen only)
- Universal roof mounted solar prep
- Back-up camera prep
- Heated tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8' cu. ft. refrigerator
- Solid surface counters
- 16" E range tires with custom aluminum wheels
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
- Fantastic Fan
- 10 gallon DSI water heater
Half-Ton Fifth Wheel Standard Features
- Large LCD TVs on all models
- Universal roof mounted solar prep
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- Shaker style real hardwood cabinets with hidden hinges
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
See us for a complete list of features and available options.
