Floorplan - 2017 Forest River RV Wildcat Maxx 282RKX
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $34,995
-
Sleeps 4
-
2 Slides
-
Rear KitchenFront Bedroom
-
32ft Long
-
8,451 lbs
-
Marble, Weathered Slate, Ebony

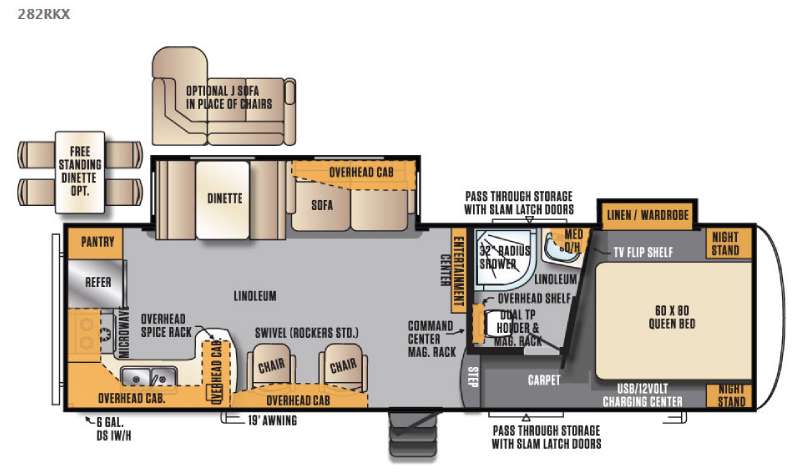

282RKX Floorplan
Specifications
Sleeps | 4 | Slides | 2 |
Length | 32 ft | Ext Width | 8 ft |
Ext Height | 12 ft 5 in | Interior Color | Marble, Weathered Slate, Ebony |
Hitch Weight | 1507 lbs | GVWR | 11667 lbs |
Dry Weight | 8451 lbs | Cargo Capacity | 3216 lbs |
Fresh Water Capacity | 87 gals | Grey Water Capacity | 108 gals |
Black Water Capacity | 54 gals | Tire Size | 15" |
Furnace BTU | 35000 btu |
Description
Inside this Wildcat Maxx 282RKX half ton fifth wheel by Forest River you will find double slides and a rear kitchen area.
To the left of the entrance there are two lounge chairs or an optional j-sofa. The opposite side of the fifth wheel has a slide with a dinette or an optional free-standing table and sofa. Next to the slide you will find an entertainment center.
In the rear of the fifth wheel you will find the kitchen area. There is a l-shaped counter with a double kitchen sink, three burner range, microwave, refrigerator, and pantry.
As you step up, you will find the bathroom is on the left. Inside the bathroom there is a toilet, corner shower, sink, and medicine cabinet.
In the front bedroom there is a queen bed with nightstands on either side of the bed. The linen/wardrobe slide offers extra storage space.
There are plenty of overhead cabinets throughout the fifth wheel, as well as an exterior pass through storage area, and a 19' awning, plus more!
Features
Living Room
- Extra large booth dinette with storage under and dual pedestal table
- Tri-fold sofa Hide-a-Bed sleeper sofa
- Large panoramic picture window at all dinettes
- Overhead cabinets in slide room (dinner plate depth!)
- Pleated night shades
- AM/FM/CD/DVD/USB/AV system with remote and Bluetooth technology
- RCA plugs for game systems or digital cameras
- Taller 6′ high slide-out height (1/2-Ton Fifth Wheels)
- Taller 6′4″ high slide-out height (Standard Fifth Wheels)
- Satellite and cable TV hook ups
- 12V LED decorative lighting in slide-outs
- High back, extra-large swivel rocking chairs (select models)
- Slider windows at ends of slide-outs
- Maxx Bright complete interior LED lighting
- Residential carpeting with Stain Guard
- Magazine rack
- Command center with monitor panel
- Surround sound speakers
- Wall clock
Executive Kitchen
- Residential Shaker-style hardwood cabinet doors
- Residential hidden hinges
- Brushed nickel finish door and drawer hardware
- Stainless appliances
- Residential full-extension steel ball-bearing drawer guides
- Storage above refrigerator (most models)
- Upgraded microwave oven
- Brushed nickel pull-out residential style metal high-rise faucet with optional solid surface counters
- 8 cu. ft. refrigerator (included on standard Fifth Wheels)
- Extra large dual-basin kitchen sink with flush mount dual sink covers
- Deep storage overhead kitchen cabinets
- Extra large pots and pans drawer (most models)
- Toe kicks in kitchen cabinet base
- Glued down residential Trekk® linoleum
- 22" oven and 3-burner range with cover and built-in knife rack
- Residential style range vent with light and fan
- Paper towel rack
- Cutlery drawer
- Kitchen wall border
- Cutting board
- Knife rack
- C.T.S. (central trash system) (most models)
Bathroom
- Porcelain toilet with foot pedal flush
- Built-in wood medicine cabinet
- GFI recepts in bathroom
- Residential shower surround with radius glass shower doors
- Skylight in shower
- Power vent fan
- Built-in wood dual toilet paper holder with magazine rack
- Soap dish
- Tooth brush holder
- Dual towel racks
- Radius glass shower doors
Bedroom
- Pillow-top residential queen bed
- Full stand-up height in all bedrooms
- Flat floor bedrooms in all Fifth Wheels (no more steps on side of bed)
- Gas struts to lift bed for under-bed storage
- Fully finished bed bases
- Complete LED lighting including reading lights
- Upgraded residential queen-size bedspread and headboard
- Bedroom roof vent
Construction
- 3/8″ roof decking
- Insulated A/C duct work
- Heavy duty steel I-beam chassis
- High density R10 block foam insulation in walls
- Vinyl covered interior decorative wall board
- Full-size radius entry door
- 13.5K BTU air conditioner
- 5/8″ seamless floor decking
- One-piece Alpha Super Flex 3 roof membrane (12 year warranty)
- 5″ engineered and fabricated roof rafters on 16″ center
- 2 layers of (R-7) fiberglass roof and end wall insulation plus reflective (R-38) with Astrofoil
- (R-7) Fiberglass floor insulation plus reflective (R-38) with Astrofoil
- Aerodynamic gel-coated fiberglass front cap
- All Season 12V heating pads on all tanks
- Optimized turning radius for today's short-bed trucks
- 2″ thick Alumacat™ vacuum-bonded fiberglass laminated sidewalls
- Spring-loaded quick release jack pins on landing gear legs
- Radius-wrap aluminum skirt metal
- Fully enclosed underbelly with (R-7) fiberglass insulation and (R-38) Astrofoil under holding tank
- Premium carpet padding
- Synthetic residential carpeting with stain guard
- Load range D 15″ radial tires (standard) or optional load range E 16″ tires
- E-Z lube axles
- Molded fender skirt
- Pre-wired for back-up camera
- Vented attic
Climatech™ Cold Weather All Seasons Insulation Package
- Underbelly has R-38 reflective astro-foil insulation + R-7 fiberglass under each holding tank. Also included is a 12-volt tank heater for each of the holding tanks.
- The floor has R-38 reflective astro-foil insulation + R-7 fiberglass insulation.
- The ceiling, front wall and rear wall have R-38 reflective astro-foil insulation + two-layers of R-7 fiberglass insulation.
- The side walls, three sides of the slide-out, the raised upper deck of all fifth wheels and all raised bunk beds are vacuum-bonded, aluminum construction with R-10 high-density block foam insulation
- The slide-out floor also has a layer of R-38 reflective astro-foil insulation on top of 1.5" plywood decking.
- On all fifth wheels, the outside storage compartments have an actual heat duct blowing hot air from the furnace directly into the storage compartment.
- Every Wildcat Maxx comes with a vented attic to allow moisture to escape in the winter and heat to escape in the summer.
- Every Wildcat Maxx comes standard with a 35,000 BTU furnace.
Standard Features
- Linc® 8-function touchscreen remote
- USB Charging Port Package
- Numeric keypad keyless entry security system
- Power tongue jack (travel trailers only)
- HDMI AM/FM/DVD/CD/USB Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Front and rear electric stabilizer jacks
- Coach-Net® 24-hour technical and roadside assistance
- Solar Prep (optional 200W solar panels available, up to 400W)
- Back-up camera prep with optional camera system available
- High-end stainless appliances
- Maxx coat rack
- Outside shower system
- 1" thick, insulated slam-latch baggage doors on extra-large exterior storage
- Maxx travel rack (250 lb. load capacity)
- Exterior Maxx-Bright LED awning strip lighting
- Sanitation maintenance black tank flush
- Battery disconnect
- Maxx Bright complete coach LED light package
Half-Ton Travel Trailer Standard Features
- Solar Prep
- Large LCD HDTV
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
Standard Series Fifth Wheel Standard Features
- Large LCD TVs on all models
- Samsung® Staron solid surface counters (kitchen only)
- Universal roof mounted solar prep
- Back-up camera prep
- Heated tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- 8' cu. ft. refrigerator
- Solid surface counters
- 16" E range tires with custom aluminum wheels
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
- Fantastic Fan
- 10 gallon DSI water heater
Half-Ton Fifth Wheel Standard Features
- Large LCD TVs on all models
- Universal roof mounted solar prep
- Back-up camera prep
- Heated holding tanks
- Complete interior and exterior LED lighting
- Vented attic
- 35K BTU Furnance
- Bluetooth Stereo
- 60" x 80" Parklane Mattresses pillow-top mattress
- Battery disconnect
- Electric awning with LED patio strip lighting
- Maxx coat rack
- Stainless steel appearance appliances
- Shaker style real hardwood cabinets with hidden hinges
- 8 function LCD remote control touch pad
- Aluminum framed and vacuum-bonded construction
- All Seasons Insulation Package
See us for a complete list of features and available options.
